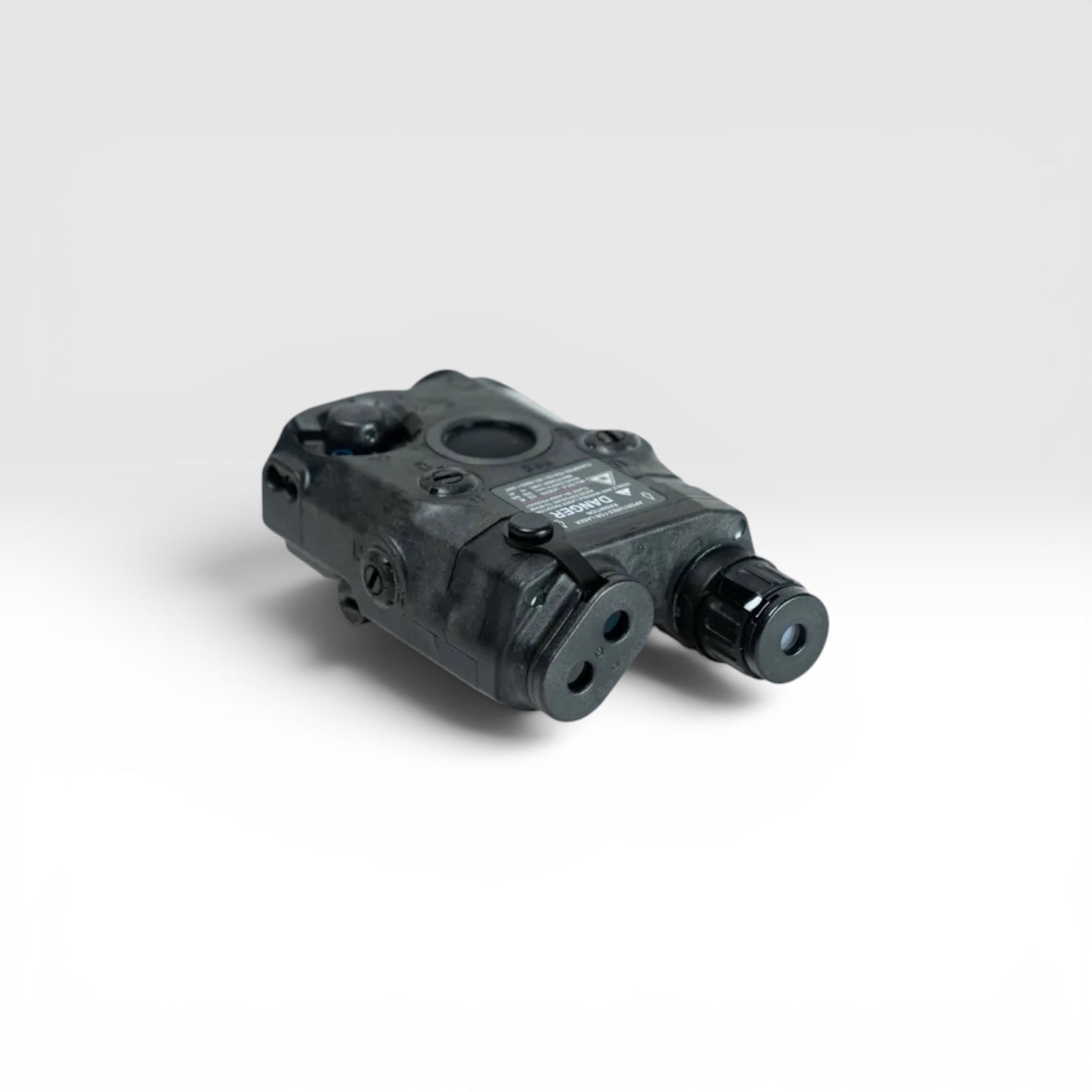

Peq 15 ATPIAL
Key Features:
Co-aligned visible and infrared lasers for precision targeting.
Hardened design suitable for small arms and crew-served weapons.
Integral Rail-Grabber interface for secure and stable mounting.
Zero retention within 0.5 mrad, ensuring consistent accuracy.
Built to meet military environmental specifications for durability and reliability.
Specifications:
Dimensions | 4.6 in. L x 2.8 in. W x 1.6 in. H |
Weight | 7.5 oz. with battery |
Battery Type | (1) 3 Volt Lithium |
Battery Life | > 6 hrs. in Dual High at 25 °C (77 °F) |
Visible Aim Laser | Specifications at 25 °C (77 °F) |
Output Power | 5.0 mW (max) / 3B Safety Class |
Beam Divergence | 0.5 (± 0.3/- 0.39) mrad |
Wavelength | 635 (± 15) nm |
IR Aim Laser | Specifications at 25 °C (77 °F) |
Output Power Low | 700 uW / 3R Safety Class |
Output Power High | 27.5 mW (max) / 3B Safety Class |
Beam Divergence | 0.5 (± 0.3/- 0.39) mrad |
Wavelength | 835 (± 15) nm |
IR Illuminator | Specifications at 25 °C (77 °F) |
Output Power Low | 3.5 mW (max) / 3B Safety Class |
Output Power High | 45 mW (max) / 3B Safety Class |
Beam Divergence | Adjustable from approximately 1 mrad to > 105 mrad |
Wavelength | 835 (± 15) nm |
